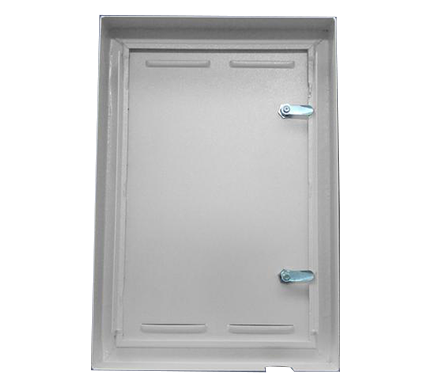

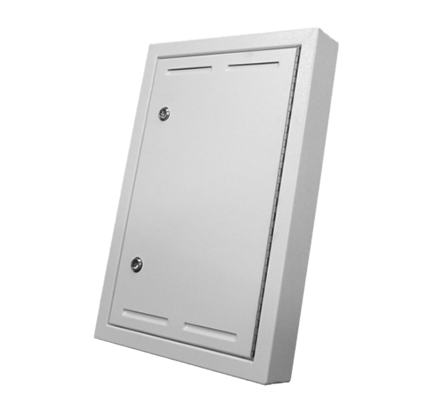

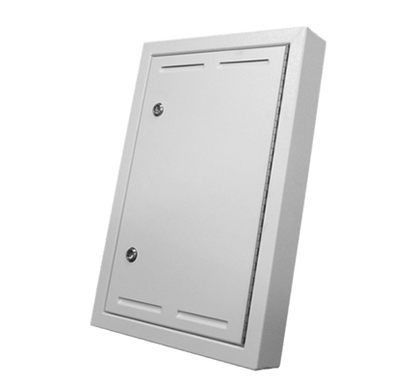

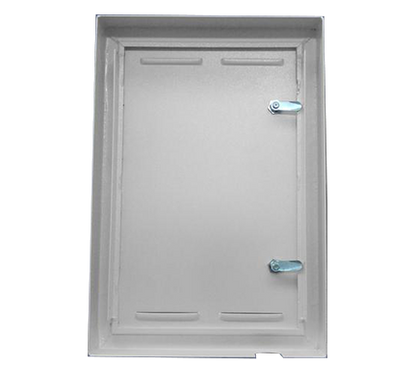

The Mitras 910002 Aluminium Architrave Overbox is designed to provide a practical repair solution for an existing recessed meter box. Rather than fixing to the surrounding brickwork, this architrave-style overbox is screwed onto the inside of the existing recessed meter box, providing a new outer door and frame.
Manufactured from white powder-coated aluminium, the Mitras IS5002 measures approximately 414mm wide x 600mm high x 65mm deep and is supplied with the required fixings. The design is suitable for compatible recessed meter box installations where the existing enclosure remains in place but the external appearance or door requires repair or improvement.
A brown version of this overbox is also available under product code IS5055, model 910021.
Key Features
- Aluminium architrave overbox for existing recessed meter boxes
- Mitras model number 910002
- Product code IS5002
- Fits to the inside of the existing recessed meter box
- Manufactured from powder-coated aluminium
- White finish
- Fixings supplied
- Approximate dimensions: 414mm wide x 600mm high x 65mm deep
- Brown version also available – IS5055 / 910021
Installation
The Mitras 910002 Architrave Overbox is screwed onto the inside of the existing recessed meter box. Unlike face-fix and universal overboxes that attach to the surrounding brickwork, this model uses the existing meter box opening for installation.
Before ordering, check the dimensions and condition of the existing recessed meter box to ensure this architrave overbox is suitable for the installation.
Product Specifications
| Brand | Mitras |
|---|---|
| Product Code | IS5002 |
| Model Number | 910002 |
| Product Type | Aluminium Architrave Meter Box Overbox |
| External Width | 414mm approx. |
| External Height | 600mm approx. |
| External Depth | 65mm approx. |
| Material | Powder-Coated Aluminium |
| Colour | White |
| Installation Type | Screwed onto the inside of the existing recessed meter box |
| Fixings | Supplied |
Alternative Brown Version
A brown powder-coated aluminium version of the IS5002 is available as Mitras model 910021, product code IS5055. It has the same approximate dimensions of 414mm wide x 600mm high x 65mm deep.
Important Compatibility Information
This product is an architrave overbox designed to fit onto the inside of an existing recessed meter box. It is not a complete replacement meter box. Check the existing meter box opening and dimensions carefully before ordering.
| Product code | IS5002 |
|---|---|
| Weight | 8.0 kg |
| Brand | Mitras Meterboxes |
| Product type | Meter Box Repair Solution |
| Standards & compliance | BS8499:2017; approved to National Grid Gas specification |
