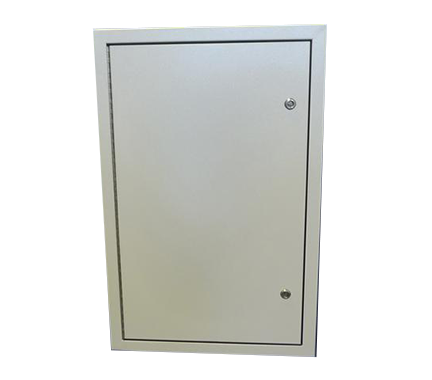

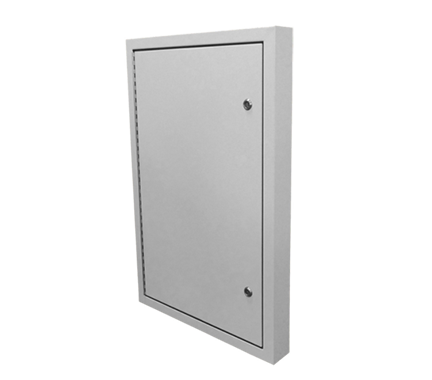

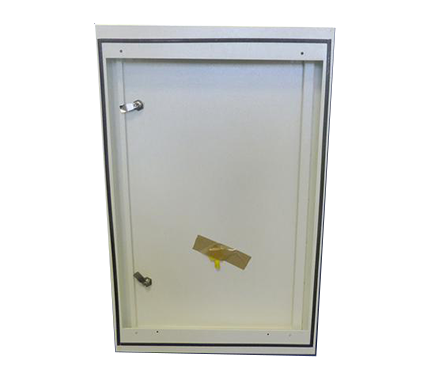

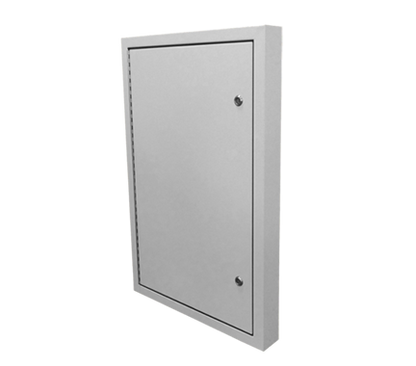

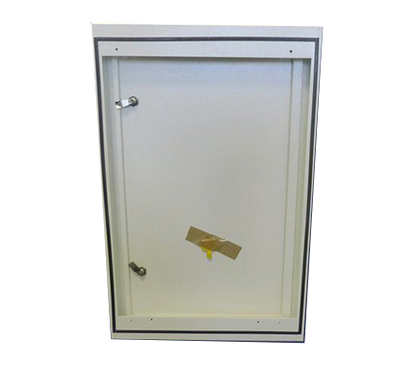

The Mitras 910030 Aluminium Fire Resistant Electricity Meter Box Overbox is designed to cover an existing electricity meter box where a fire-resistant enclosure is required. It can be used with suitable internal or external electricity meter box installations and provides a repair or upgrade solution without requiring the complete existing meter box to be removed.
Manufactured from aluminium with a white finish, the Mitras IS5082 measures 575mm wide x 880mm high x 60mm deep. The overbox is designed to fit over the existing electricity meter box and is fixed to the surrounding structure.
The supplied product information states that the IS5082 provides a 60-minute fire rating and has been tested to EN 1363-1 and EN 1366-3. Because fire performance depends on the complete tested installation, the required fire resistance and suitability of the installation should be confirmed before fitting.
Key Features
- Fire-resistant overbox for electricity meter boxes
- Mitras model number 910030
- Product code IS5082
- Suitable for appropriate internal and external electricity meter box installations
- Designed for applications requiring up to 60 minutes of fire resistance
- Supplied product information states testing to EN 1363-1 and EN 1366-3
- Aluminium construction
- White finish
- Dimensions: 575mm wide x 880mm high x 60mm deep
- Overbox only – complete electricity meter box not included
Installation
The Mitras 910030 Fire Resistant Electricity Overbox is designed to fit over an existing electricity meter box. Before ordering or installing, check the dimensions of the existing meter box, the available surrounding structure and the fire-resistance requirements of the installation.
Product Specifications
| Brand | Mitras |
|---|---|
| Product Code | IS5082 |
| Model Number | 910030 |
| Product Type | Fire Resistant Electricity Meter Box Overbox |
| External Width | 575mm |
| External Height | 880mm |
| External Depth | 60mm |
| Material | Aluminium |
| Colour | White |
| Application | Internal and external electricity meter box installations requiring fire resistance |
| Fire Resistance | 60 minutes |
| Fire Test Standards | EN 1363-1 and EN 1366-3 |
Important Fire Rating Information
The supplied product information states that this overbox has been tested to EN 1363-1 and EN 1366-3 for 60-minute fire resistance. Fire performance can depend on the complete installation, substrate, fixings and surrounding construction. Ensure that the proposed installation meets the requirements of the relevant project specification and building regulations.
Important Compatibility Information
This product is a fire-resistant overbox for an existing electricity meter box and is not supplied as a complete meter box. Check the existing enclosure dimensions and installation requirements carefully before ordering.
| Product code | IS5082 |
|---|---|
| Weight | 8.0 kg |
| Brand | Mitras Meterboxes |
| Product type | Meter Box Repair Solution |
| Standards & compliance | BS8499:2017; approved to National Grid Gas specification |
