A damaged or missing hinge can prevent a meter box door from opening and closing correctly. Fortunately, if the rest of the meter box and door are still in good condition, you may only need to replace the pin hinge rather than the complete door or meter box.
In this guide, we'll explain how to replace a pin hinge on a meter box door, including how to install and release the spring-loaded brass pin used to secure the door in position.
When Should You Replace a Meter Box Door Hinge?
Meter box doors are exposed to the weather and regular use, which can eventually cause the hinge components to become worn, damaged or lost.
Common signs of a damaged meter box hinge include:
- The meter box door has come away from the frame
- One side of the door is loose
- The door drops when opened
- A hinge pin is damaged or missing
- The door doesn't align correctly with the frame
- The door is difficult to open or close
If the door and meter box enclosure are otherwise in good condition, replacing the hinge pin can be a simple and cost-effective repair.

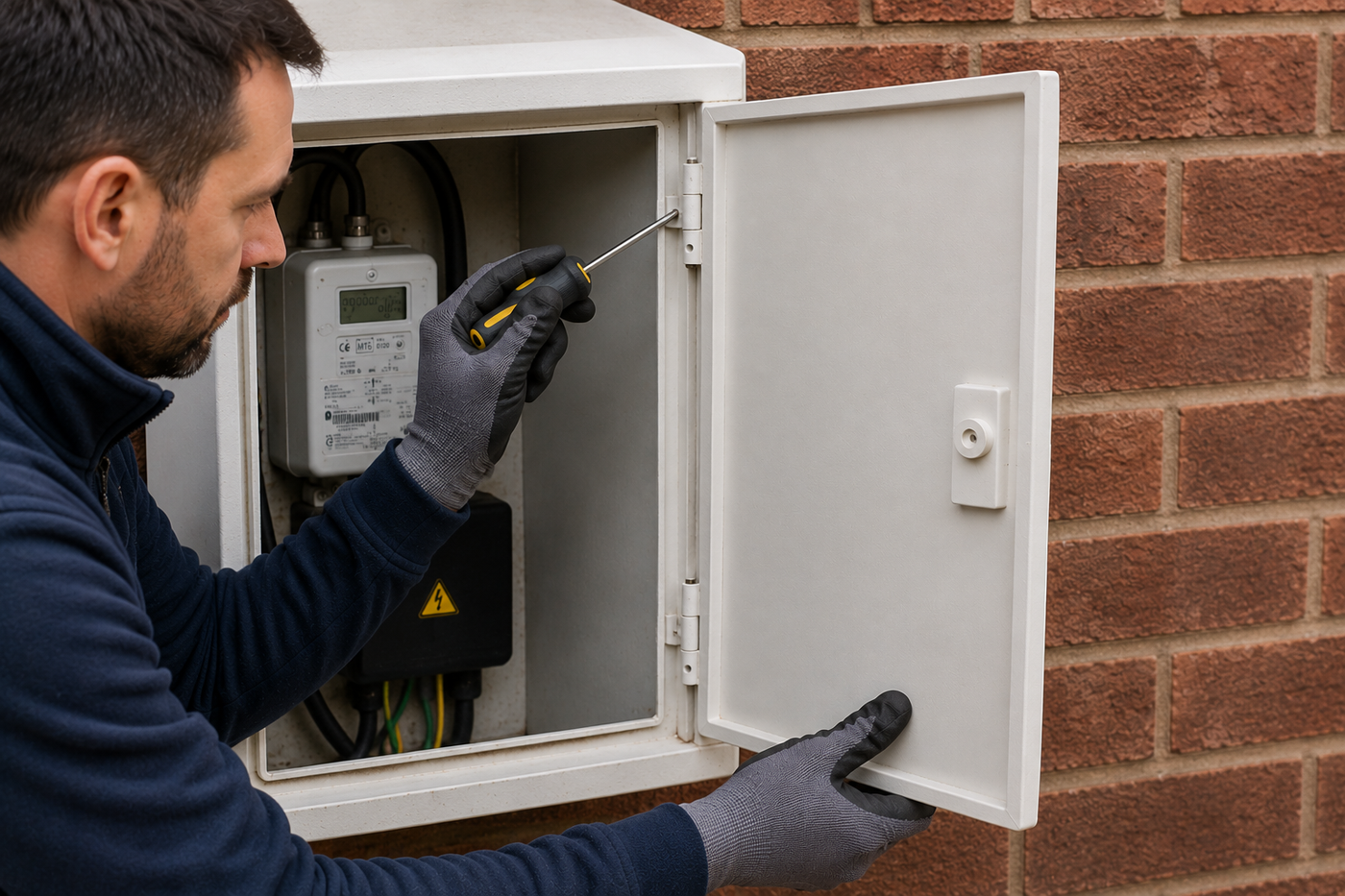

How to Replace a Pin Hinge on a Meter Box Door
The Mitras™ Meterboxes installation video demonstrates how to replace a pin hinge and refit the meter box door.
Watch the installation video:
HOW TO | Replace a Pin Hinge on a Meter Box Door | Product Installation | Mitras™ Meterboxes
The replacement uses a spring-loaded brass pin, allowing the door to be secured to the existing hinge points on the meter box.
Step 1: Position the Meter Box Door
Start by positioning the replacement or existing meter box door against the enclosure.
Align the hinge points on the door with the corresponding points on the meter box frame.
Correct alignment is important before attempting to engage the spring-loaded pin.
Step 2: Release the Spring-Loaded Brass Pin
Using a flat-headed screwdriver, carefully release the spring-loaded brass pin.
This can be a fiddly job, so take your time and make sure the door remains correctly aligned while working on the hinge.
The spring-loaded mechanism allows the pin to retract so that the door can be positioned within the hinge points.
Step 3: Position the Hinge
With the brass pin retracted, carefully move the door and hinge into the correct position.
Make sure the hinge is properly aligned with the corresponding mounting point on the meter box.
Avoid forcing the components into place. If they don't line up correctly, reposition the door before releasing the pin.
Step 4: Release the Brass Pin
Once everything is correctly aligned, push the spring-loaded brass pin into itself and release it.
The pin should extend into the corresponding hinge point, fixing the meter box door into place.
Check that the pin has fully engaged before letting go of the door.
Step 5: Check the Meter Box Door
Once the hinge is installed, carefully open and close the meter box door several times.
Check that:
- The brass pin is fully engaged
- The hinge remains securely in position
- The door opens and closes freely
- The door doesn't drop or move excessively
- The door aligns correctly with the meter box frame
- The latch engages correctly when the door is closed
If everything operates smoothly, the hinge replacement is complete.
Can You Replace a Meter Box Door Hinge?
Yes. A broken hinge doesn't necessarily mean that the entire meter box or even the complete door needs replacing.
If the enclosure and door are still serviceable, replacing a damaged or missing pin hinge can restore the operation of the existing meter box.
It's a simple repair that can help extend the life of the meter box while avoiding unnecessary replacement of other components.
Mitras™ Meter Box Replacement Parts
Mitras™ Meterboxes provides replacement components designed to repair and refurbish existing gas and electricity meter boxes.
Replacement hinges, latches, doors and other meter box components can provide a practical solution where individual parts have become damaged through age, weather exposure or everyday use.
Before ordering a replacement component, check your existing meter box and door carefully to make sure you've identified the correct part.
Watch the video above to see how to replace a pin hinge on a meter box door using the spring-loaded brass pin.
